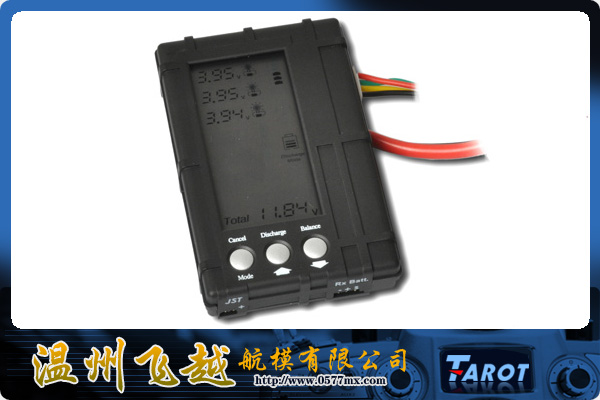

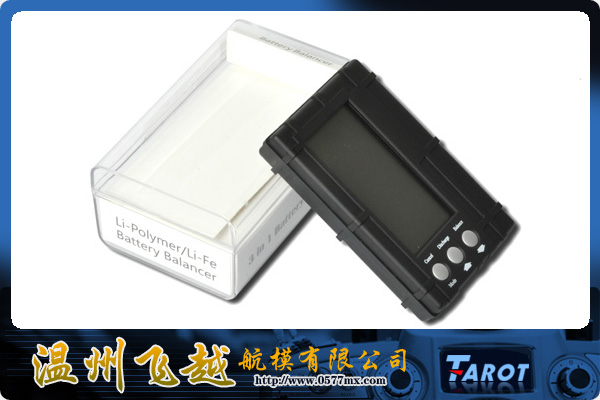

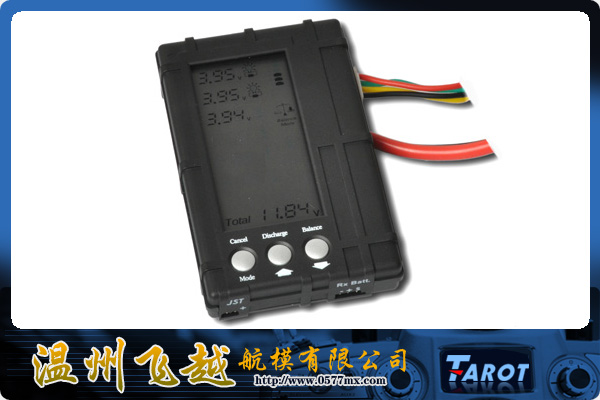

飞越 Tarot 多功能锂电平衡.放电.电量显示器 TL2683
产品展示

产品名称:飞越 Tarot 多功能锂电平衡.放电.电量显示器 TL2683

所属类别:其它电子类

销售价格:82 RMB

上传时间:2011-05-07

浏览次数:4920

【产品说明】三合一电池平衡显示器使用大型液晶屏,可同时最多显示6串
锂电池的电压值。专为聚合物锂电池和磷酸铁锂电池设计,精确测量电池总
体电压和单体电压、对多颗串联电池执行平衡操作,可对电池进行放电,以
利于长时间存放,避免电池损坏。三合一电池平衡显示器的平衡功能允许电
池于充电前后或使用(放电)前后执行平衡功能,同时也允许搭配充电器使用,
于充电过程中同时执行分压平衡功能。

【产品规格】
支持电池类型:Li-Po/Li-Fe 2~6 cell
(标称电压7.4V~22.2V使用分压接头)
接收机电池:1.2V~8.5V DC
(不限电池类型,但需外接7.4V~11.1V,使用JST接头)
平衡电压设定范围(下限):2.0V~3.9V(默认3.3V)
放电电压设定范围(下限):3.0V~4.2V(默认3.9V)
放电电流(4.0V/Cell):约450mA

英文说明:
RC Lipo battery 3iin1 LCD voltage indicator Meter + Balancer + Discharger
Lipo battery is powerful and with high capacity for longer run time, but proper
care is a must for all lipo battery. This device is make for a quick reference of
your lipo battery with instant voltage reading. Besides, this device also act as
a "dead cell" detector to indicate which cell is need to be replaced.
Besides above function, this device also act as lipo balancer to condition your lipo
before charge. And also a discharger to discharge the lipo when you play in field.
This device can also testing your receiver battery with JST or Futaba/JR type plug.
Simply plug-in your lipo via the balance charger plug to this device and you will
have all the information you needed.
Easy to use!! must have item for your lipo!!
Detailed instruction sheet include!!
Technical Data
Dimension 93.5 x 60 x 17mm
Display LCD
Total voltage display 3.2v to 25.99v
Unit Voltage display 3.2v to 4.49v
