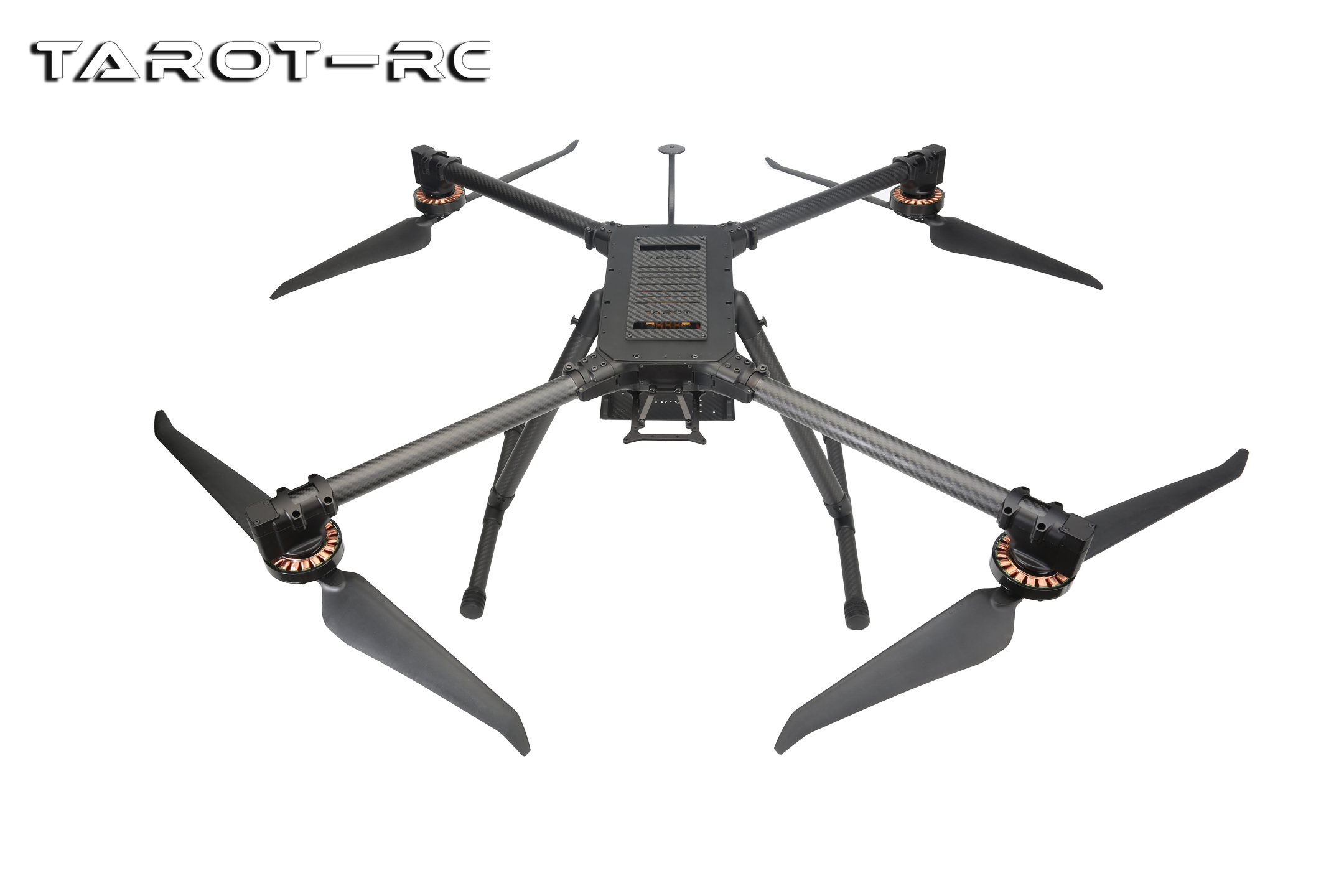

Tarot Multi-rotor Frame/Quadrotor/All Aluminum Body/ With special battery M860A
Products

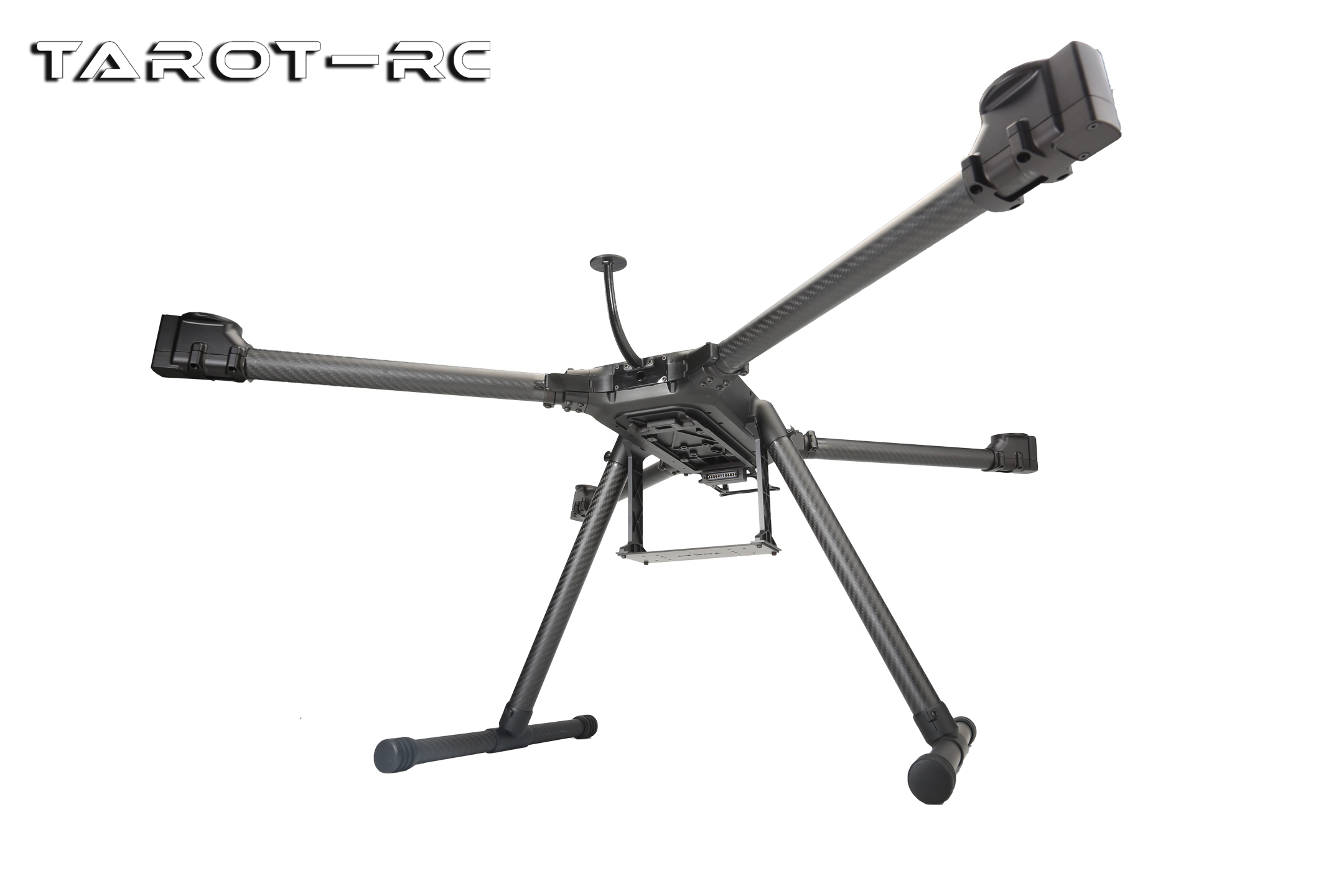

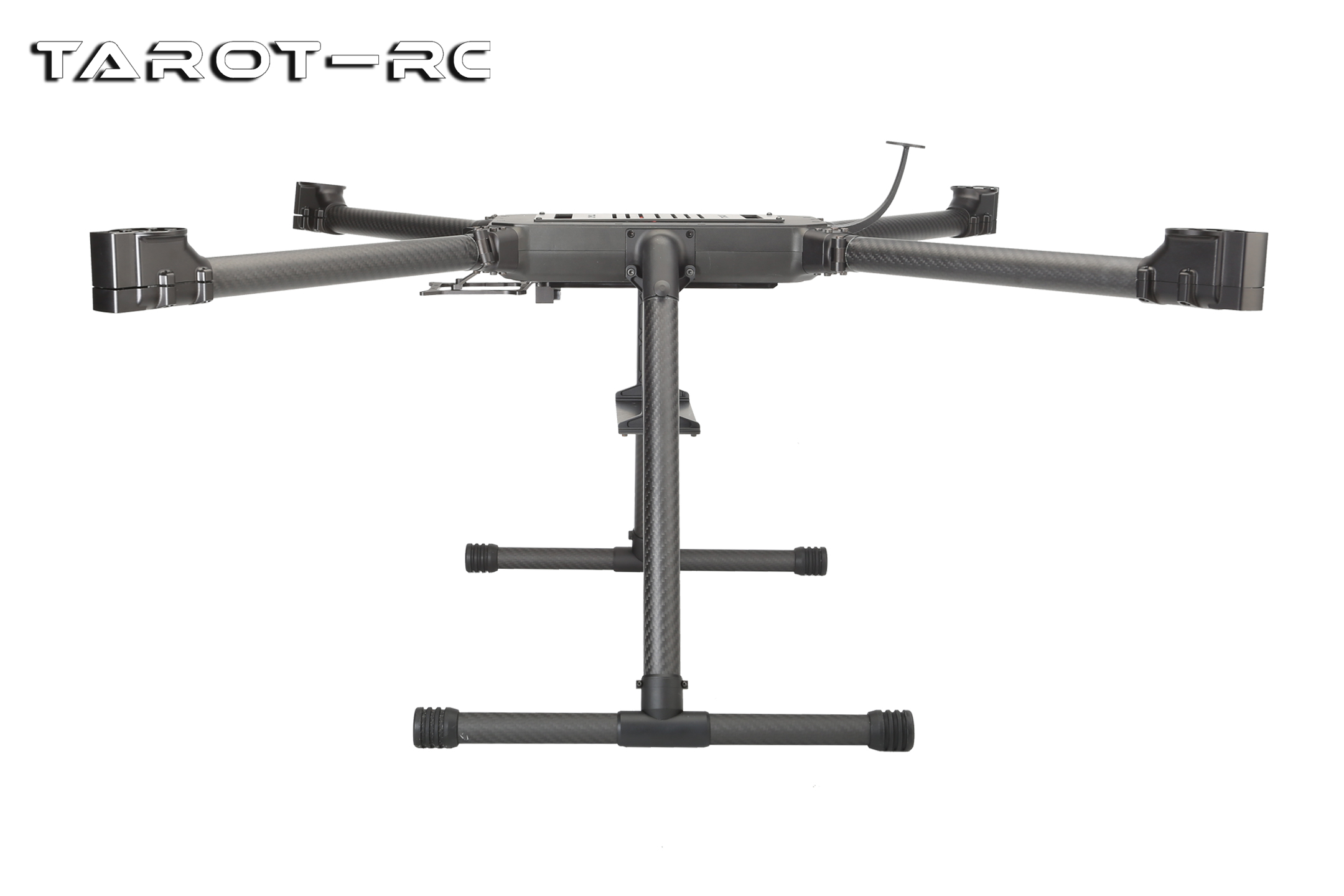

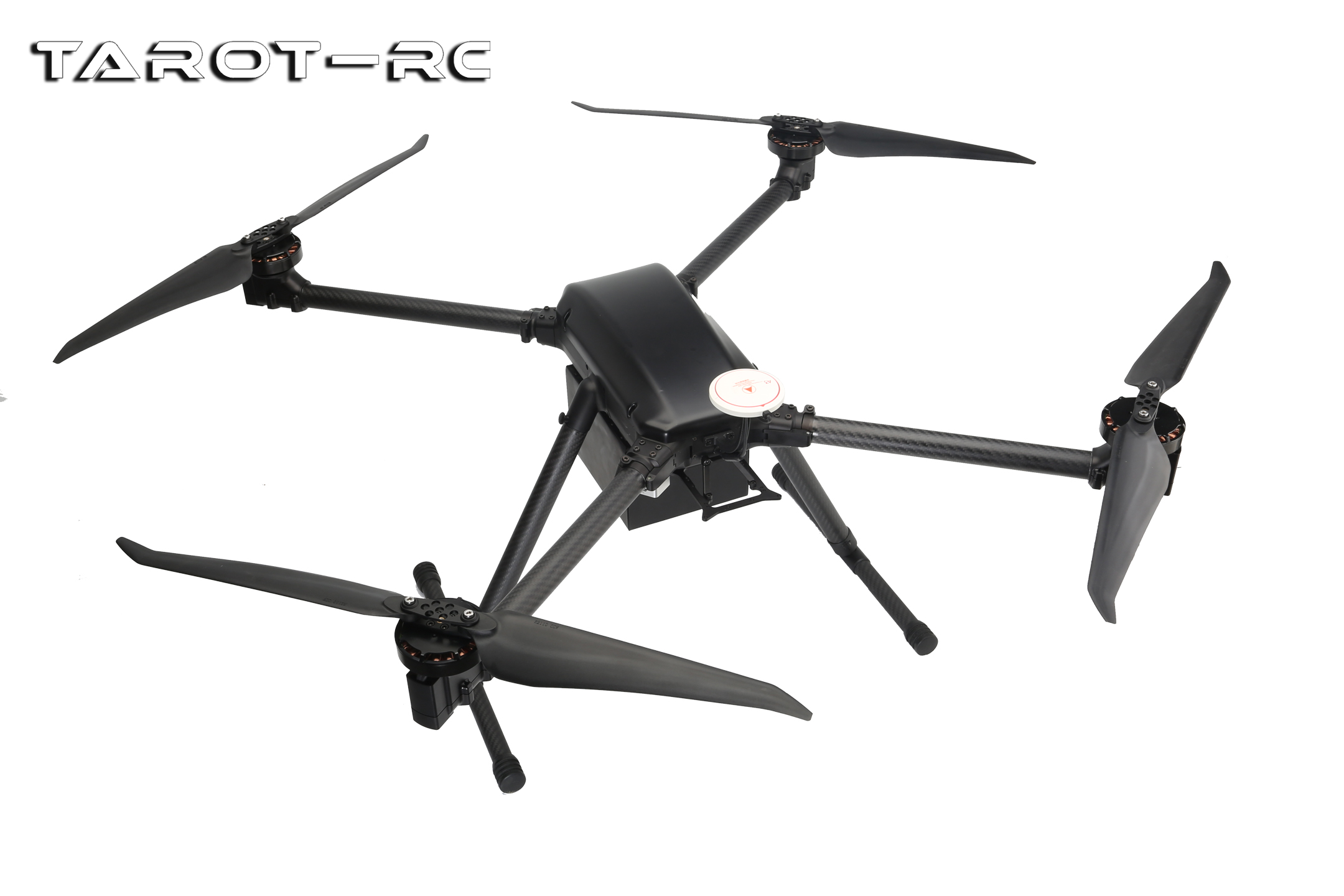

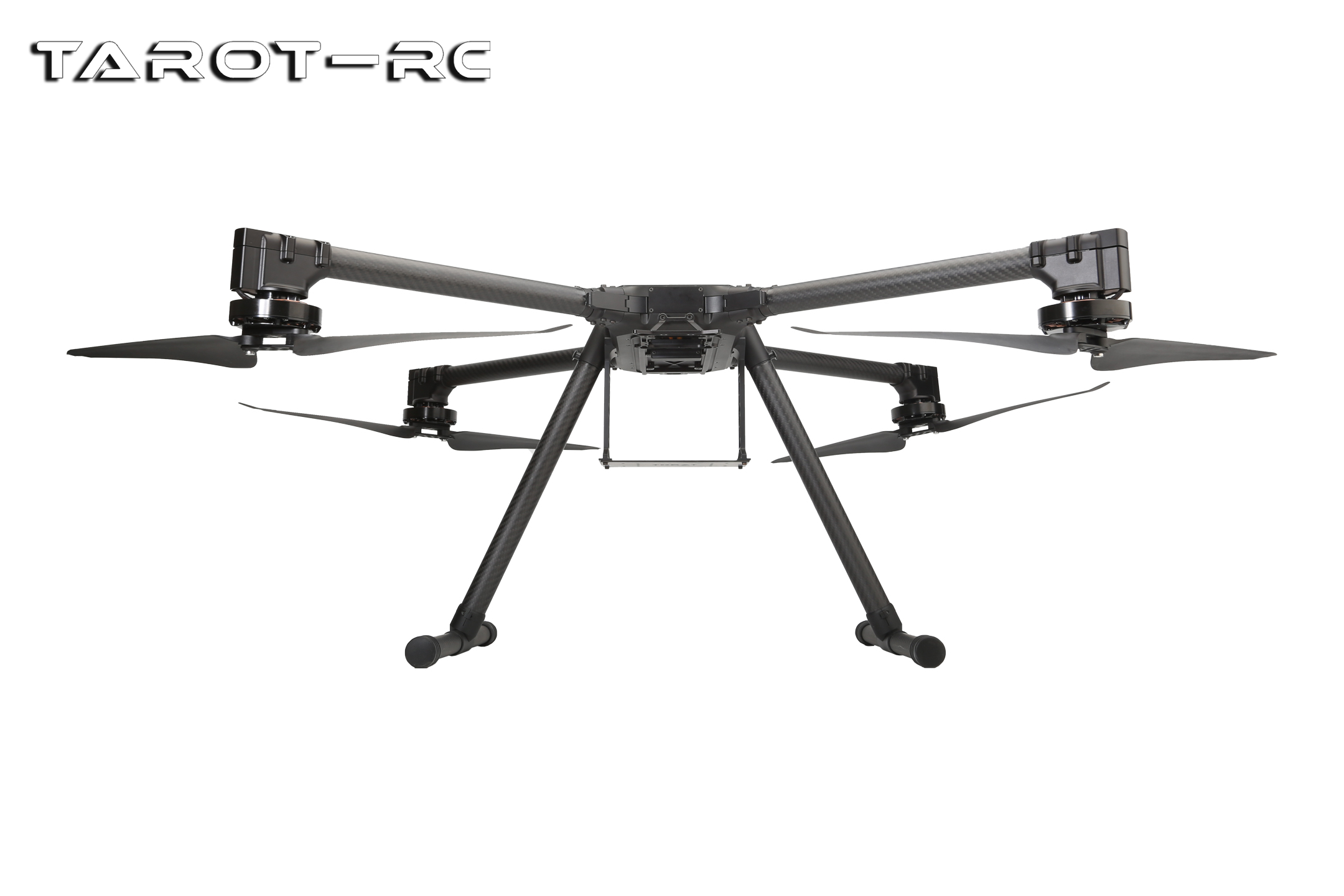

Product:Tarot Multi-rotor Frame/Quadrotor/All Aluminum Body/ With special battery M860A

Category:Multi-copter Frame

Price:11300 RMB

Date:2024-01-30

Hits:5200

2024031301002.jpg2024031301003.jpg2023102501001.jpg2023102501012.jpg2023102501010.jpg2023102501011.jpg




Standard Configuration
ConfigurationAttributeLink

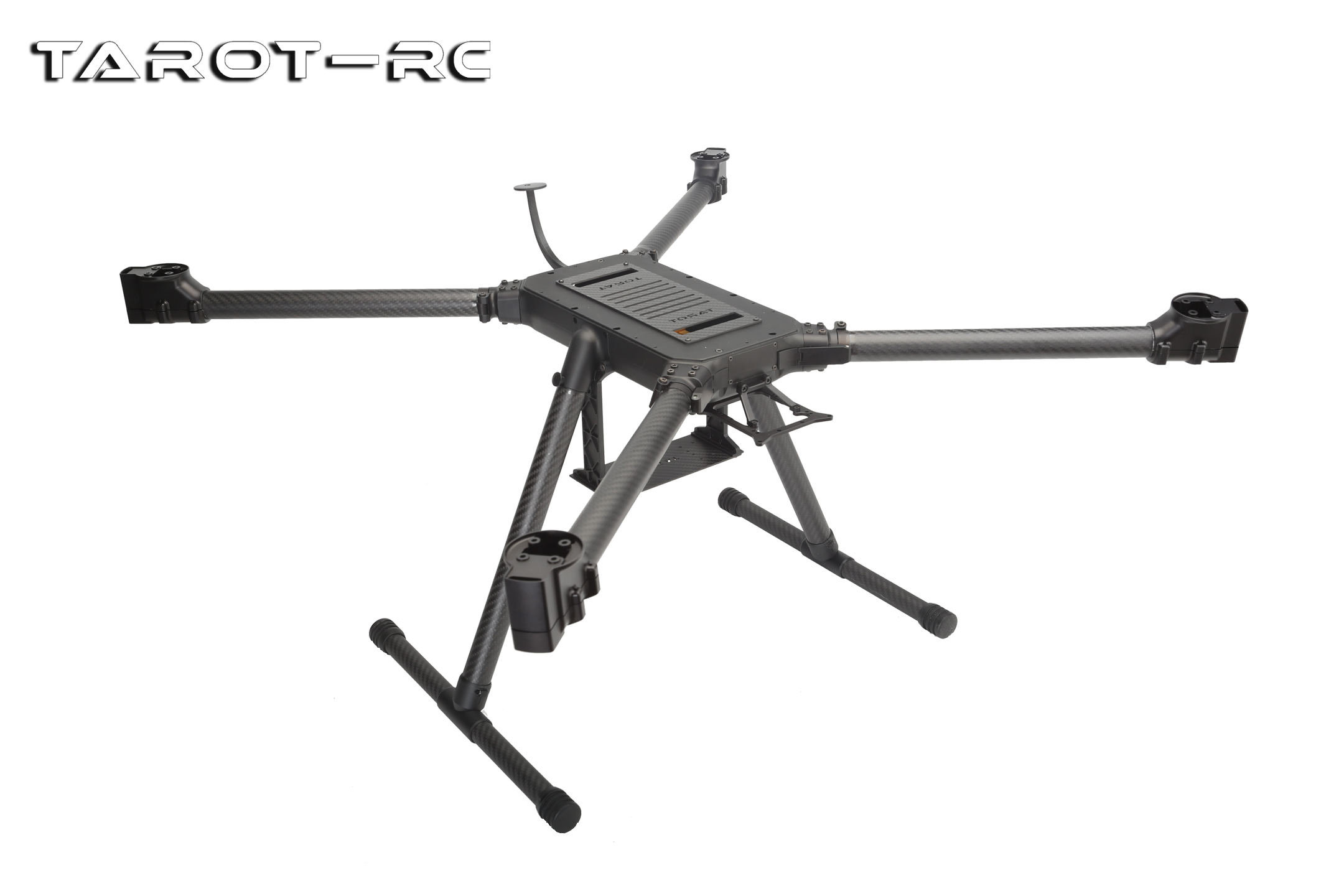

FrameM860
MotorTarot 12S/6009/130KVMartin Brushless Motor 12S/6009/130KV TL60M09
ESCFLYCOLOR/60A/12SFLYCOLOR X-Cross HV3 12S ESC/60A TL5201-01

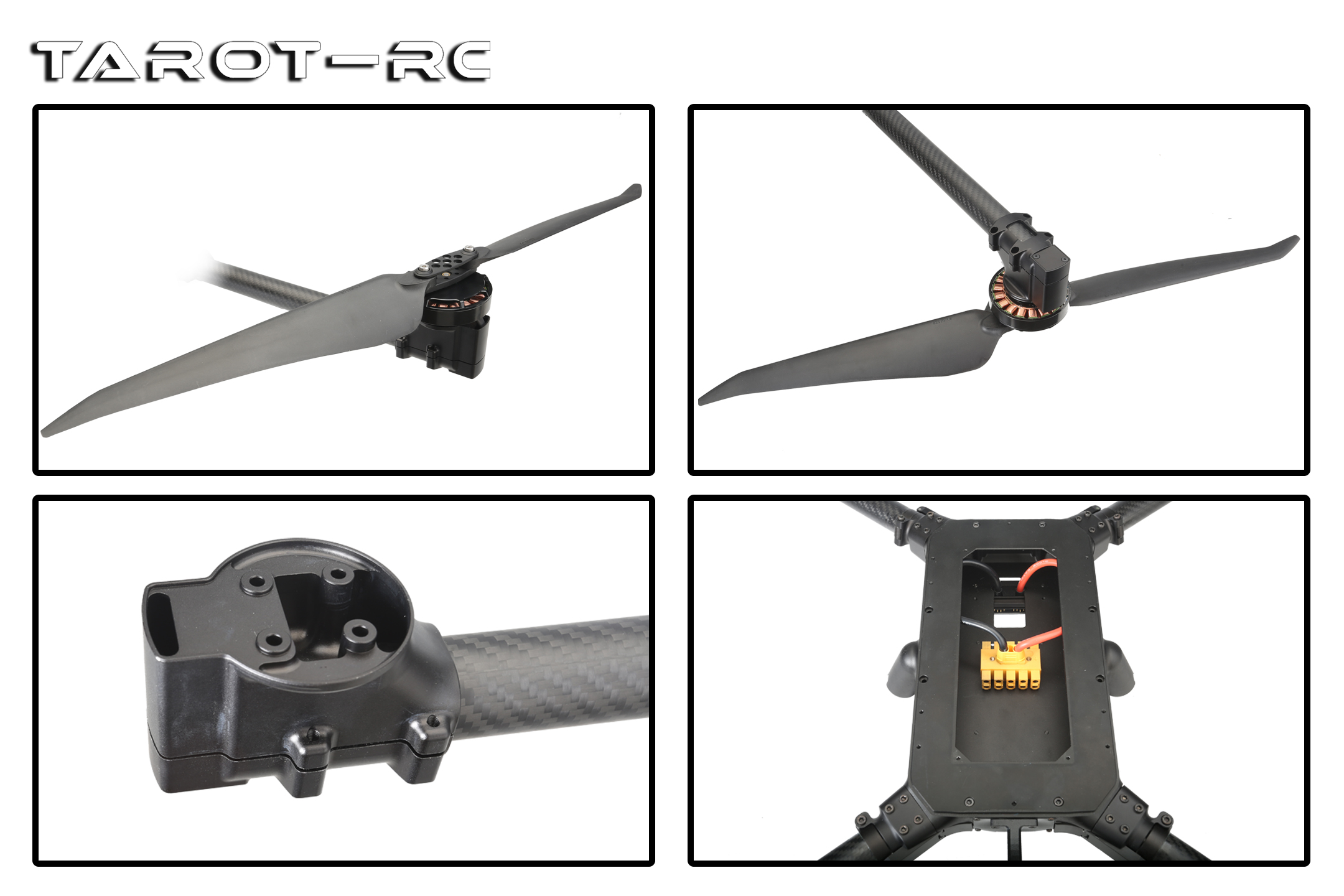

PropsTarot 2110Tarot 21 inch Folding CW and CCW Propeller Holder Set/2110 TL100D26
Battery15000mAh/12SM860 dedicated quick release battery

Frame Parameters
  Parameter name     Parameter value  Parameter name     Parameter value
  Empty aircraft weight     3.3KG  Wheelbase      860mm
  Battery weigh    3KG  Unfolding wheelbase    1391mm
  Take-off weight    6.3KG  Folding wing wheelbase    386*362mm
  Max. wind resistance    Force 6 wind Center compartment size     250*130*40mm
  Flight distance     4000m  Altitude (aviation)    398mm
  Frame height    3000m  Battery Size  152*125*90mm
  Flight mode    Self-stabilizing,altitude setting,stay-behind,one-key return,etc.
  Test environments    Sunny.35°C. Wind force 2
 Drone endurance length is related to the test environment and battery capacity
  Unloaded flight   13A≈65min
  Loaded flight   (1kg/16.5A)≈50min,(2kg/19.5A)≈40min,(3kg/23.5A)≈35min

Product Description:
·Tarot's new Quadcopter is a multi-axis kit designed for professional aerial photography users;
·Kit includes frame,motor,ESC,props,quick release battery(Overseas version only has a battery compartment because the battery can't be shipped);
·All-aluminum alloy one-piece center compartment;

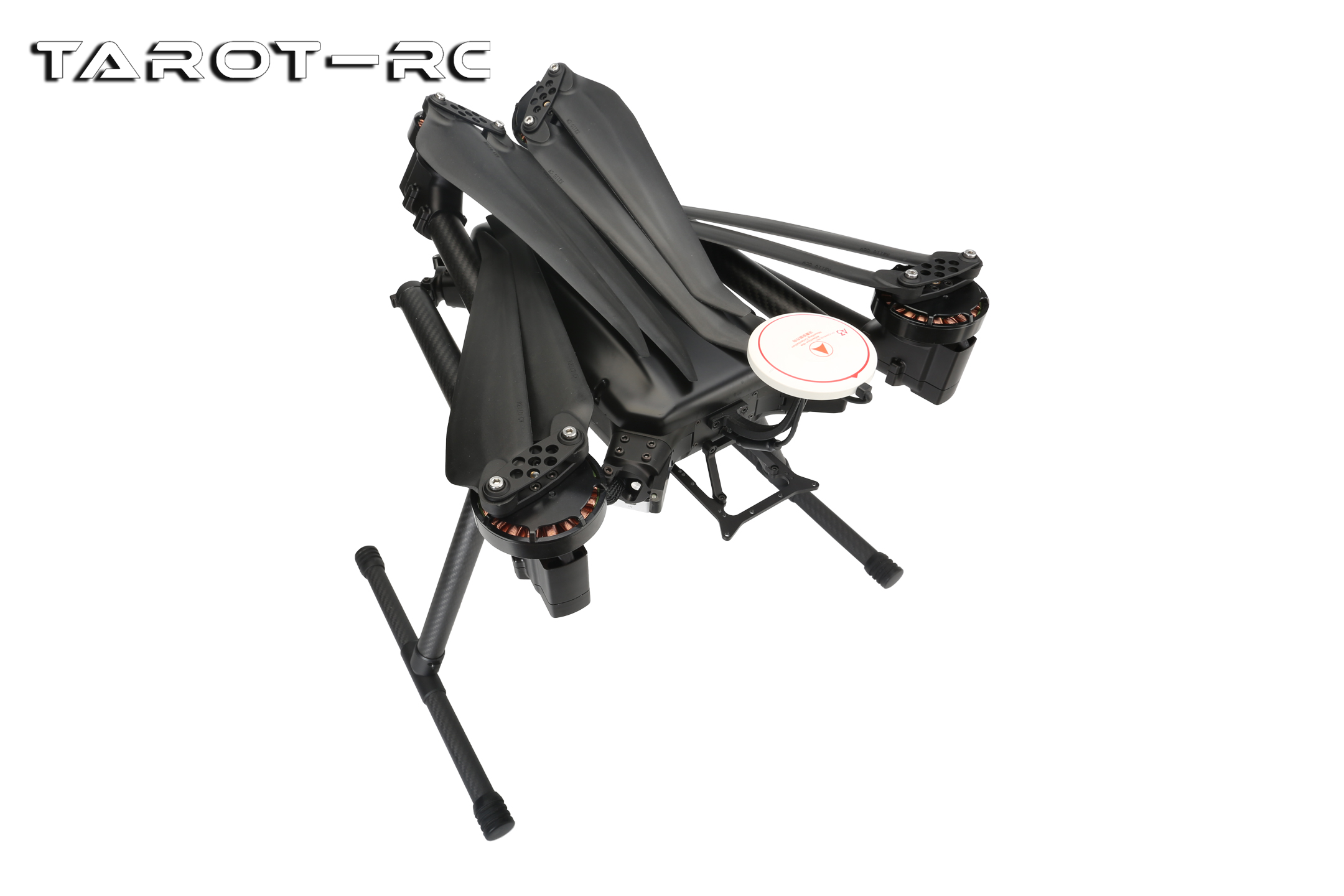

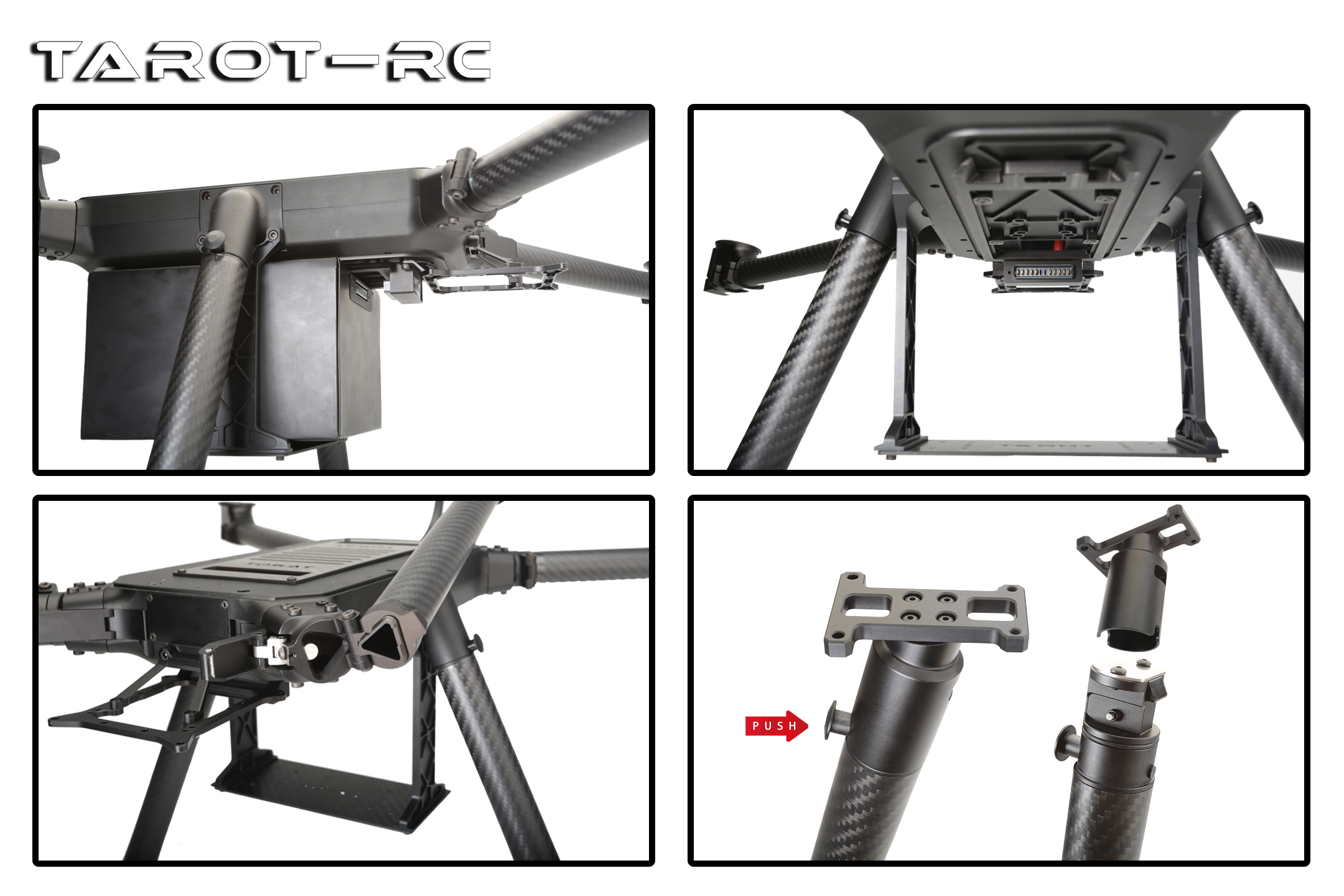

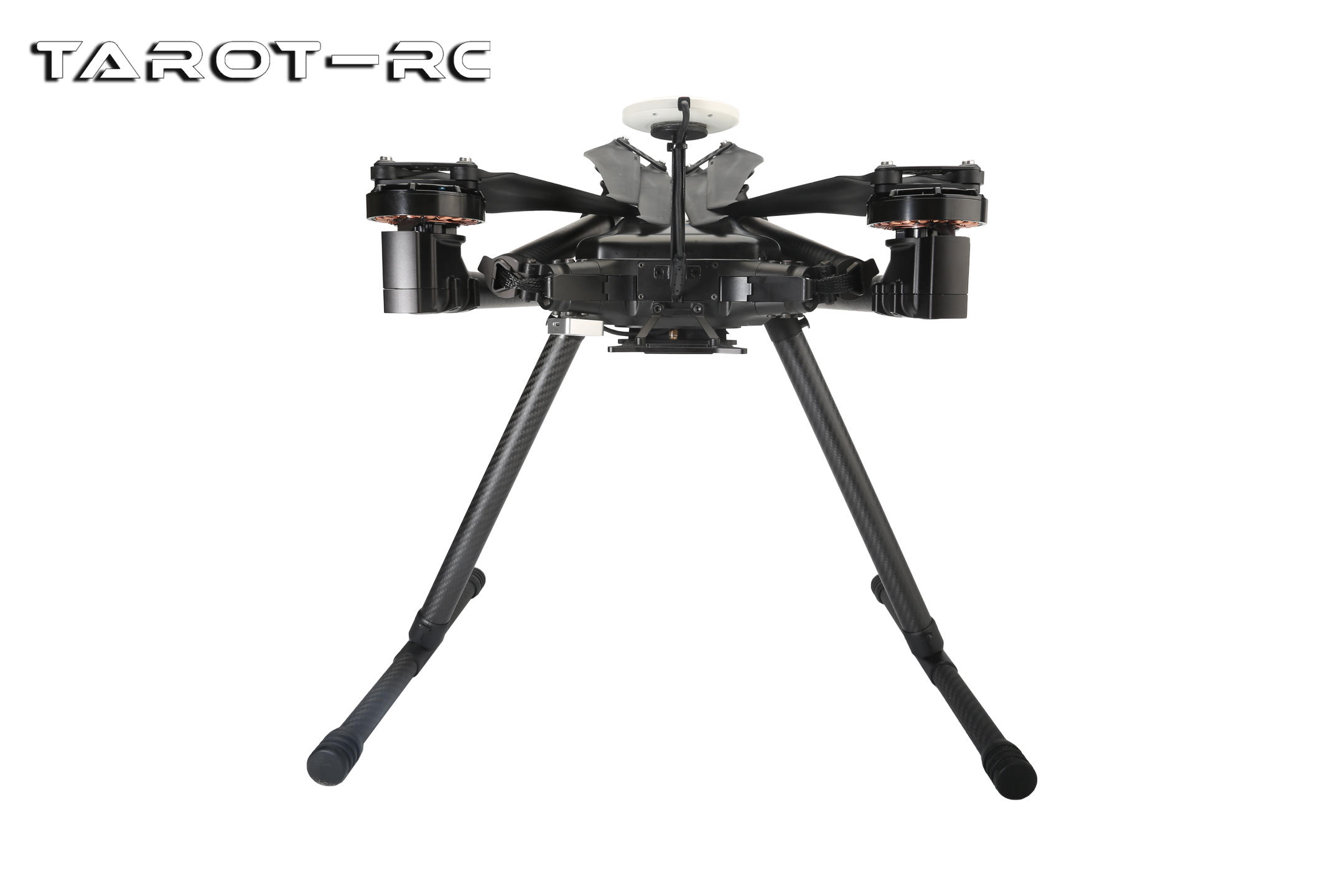

·Novel quick-detachable T-shaped landing gear, as well as the arm folded back and forth design;
·Overall lightweight, easy to carry and other features;
·Empty takeoff weight about 6.3KG, maximum extra load 3KG;
·Easy to carry DSLR and other aerial photography equipment, with 65 minutes of unloaded long endurance stay time;
·Configuration can be upgraded to increase endurance.


Shipping List:
M860 Frame ×1
Tarot 6009/130KV Motor ×4
FLYCOLOR 12S/60A ESC ×4
Tarot 2110 Folding Propeller ×4
Quick Release Battery Set ×1
Portable aluminum box(49*37*46CM)  ×1
