Product Features:
·New design with lowered motor mounting position
·Raised PCB position gives the new quadcopter a lower centre of gravity
·Optimised for large installation space, providing ample space for various flight control systems
·Integrated PCB board with high strength gold plated composite PCB board for quick and safe connection of power supply and ESC
·The non-standard M2.5 stepped screws enable a secure connection between the PCB and the force arm
Product Description:
·The new quadcopter frame force arms are made of PA66 + 30% ultra-high strength material, resistant to drops and impacts

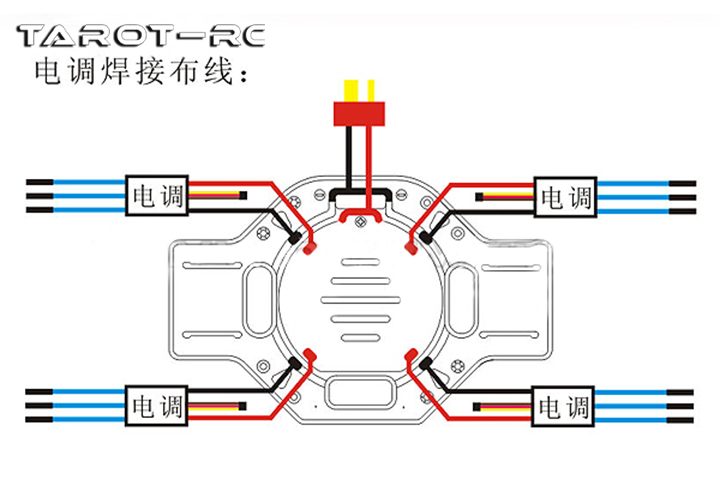

·The main body is connected by an integrated PCB with a high strength gold plated composite PCB board
·Quick and safe connection of power supplies, ESCs, etc.

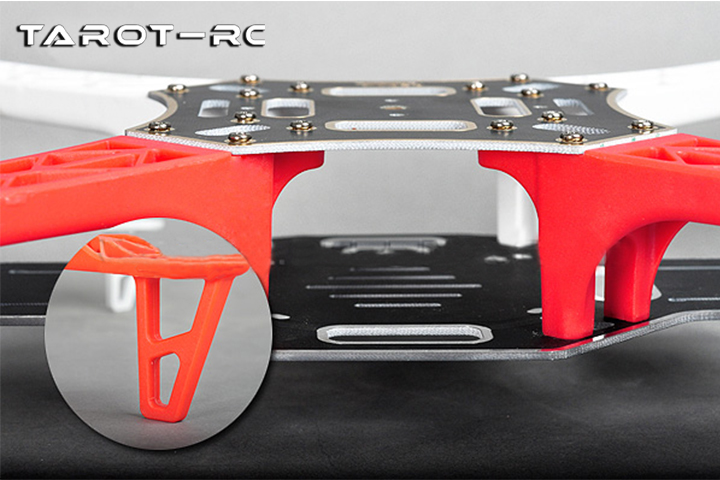

·The new design sinks the motor mounting position and raises the PCB position to give the new quadcopter a lower and more stable centre of gravity
·Optimised for large installation space, providing ample space for various flight control systems

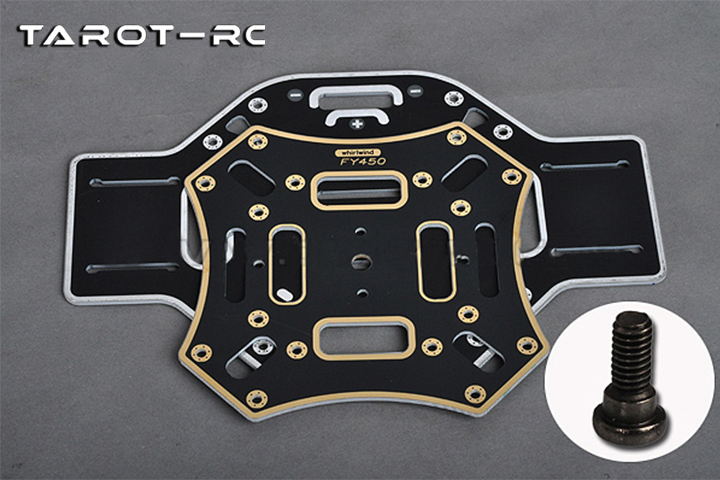

·New quadcopter with non-standard M2.5 stepped screws for secure connection between PCB and force arm
Associated Accessorie:
Tarot Heighten Landing GearFY450/FY550 TL2749-9
Product Specifications:
Frame model:FY450
Fuselage weight:282g
Symmetrical motor axis distance:450mm
Take-off weight:800g~1200g
Propeller:10x4.5 inch
Recommended Battery:LiPo(3S 1500mAh~2600mAh)
Recommended Motor:2212~2216(stator size)22*15mm or 22*12mm
Recommended ESC:20A~30A
