Tarot 25MM Suspension Motor Mount/Red TL96028
Products

Product：Tarot 25MM Suspension Motor Mount/Red TL96028

Category：Motor Mount/Quick Release/Fixing Parts

Price：68 RMB

Date：2014-09-05

Hits：14706


Product Description

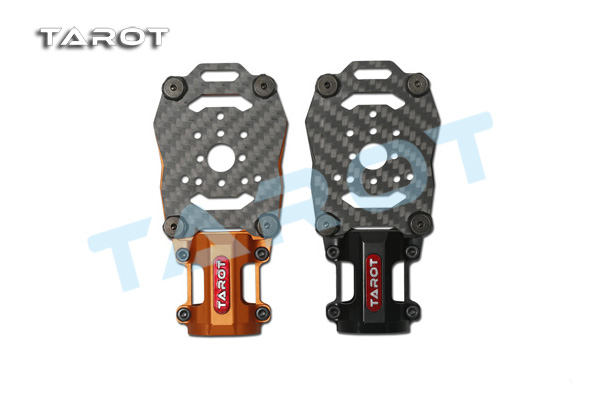

  • Tarot 25MM Suspension Motor Mount can decrease the interference from motor vibration to flight controller.
  • 6061T6 aluminum alloy applied, full CNC processed.
  • Applicable to booms with 25mm diameter modifications and DIY multi-copters.
  • Lightweight and dual-color designed, which can be recognized easily in the air.
  • Motor installation: 16MM/19MM/25MM/27MM equilateral triangle installation
  • The state intellectual property has been awarded the TAROT model.,ltd two patents. Any units orindividual without the license holder manufacture 、copy 、use and sale the product will be patent lawsuit.
  • China patent number: 2014302624299

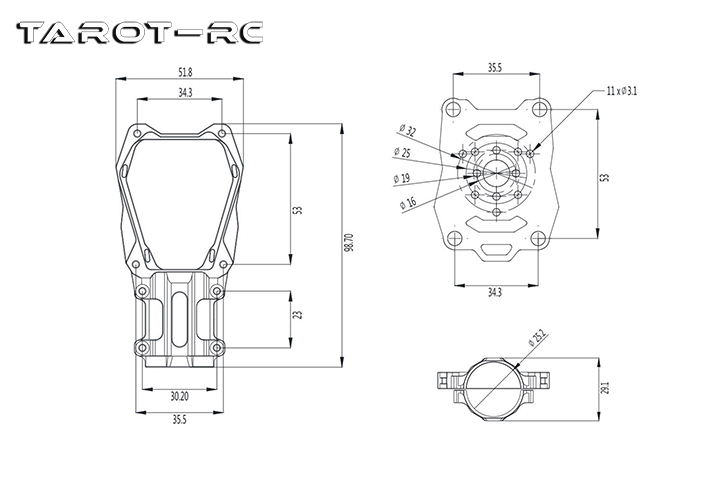

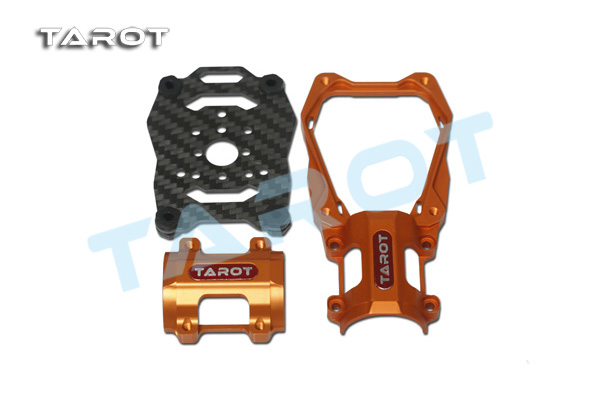

Specification:
  • Carbon fiber fix plate x1(66x51x1.6MM) 6.9G
  • Metal motor upper mount x1(99x52x9MM) 20G
  • Metal motor downer mount x1(39x36x9MM) 7G
  • M3x10MM hex collar screw x4
  • M3x10MM hex step screw x4
  • Φ3.2 hex damper ring x4 (7x8MM) 0.3G
