Product Introduction:·The Tarot T10X-V2 is a three-axis zoom camera gimbal specifically developed for industry applications;
·It features a 1/1.8-inch CMOS sensor with 2 million effective pixels, delivering crystal-clear views of subjects hundreds of meters away;
·The pod employs professional three-axis mechanical stabilization technology;
·It can be applied across multiple sectors including firefighting, forestry policing, public security surveillance, search and rescue, and environmental law enforcement.
Product Features：1. Total weight of the gimbal: 286g;
2. Visible light supports total 114x zoom (3.8x optical, 30x digital);
3. Effective pixels: 2 million;
4. Gimbal supports wide voltage DC 12-60V input;
5. Mechanical 3-axis stabilization with ±0.01° precision;
6. Aluminum alloy construction for lightweight durability and superior heat dissipation;
7. Highly optimized servo motor vector control algorithm;
8. True independent control of all three axes (Yaw, Pitch, Roll);
9. Pitch and Yaw axes support Angle Mode and Rate Mode control;
10. Supports Upright or Inverted installation (inverted mode automatically activates within 30 seconds of power-on);
11. Supports network RTSP video streaming (1920×1080), HDMI (1920×1080), and AV output;

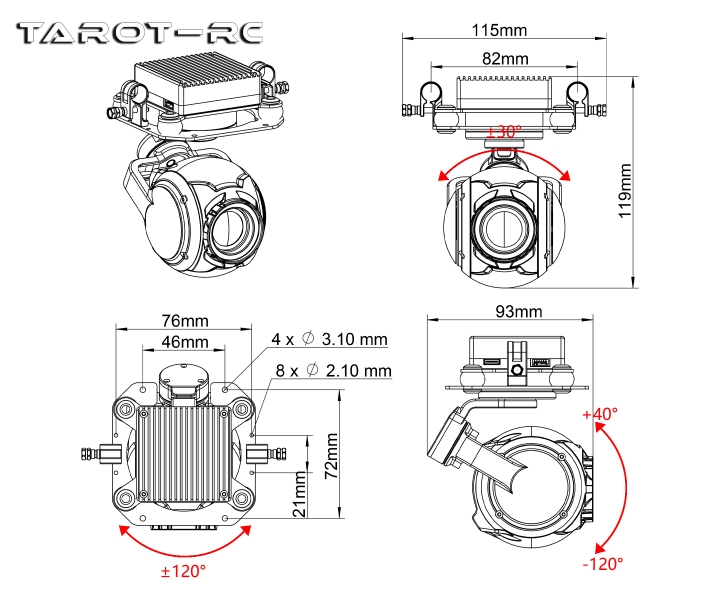

12. Controllable Yaw angle: ±120°;
13. Controllable Pitch angle: -120° to +40°;
14. Controllable Roll angle: ±30°;
15. Supports One Click 90° downward and Back to center operations;
16. Supports S.Bus control, four-channel PWM control, serial UART control, network ETH control, and PC control;
17. Supports auto/manual image focusing;
18. Supports finger-dragging panning;
19. Supports person/vehicle recognition;
20. Supports target tracking;
21. Customized dedicated ground station PC/Android GCS software enables real-time display and control.
Packing List:T10X-V2 Gimbal×1
Cable Kit ×1
