Product Description:
· 6061 T6 aluminum alloy applied, CNC processed.
· Applicable to diameter 25mm boom frame set (T810/T960/TL100B01).
· With ESC installation hole.
· ESC plate is Toray 3K carbon fiber applied, CNC processed.
· Light weight metal designed, with strong visual effect.

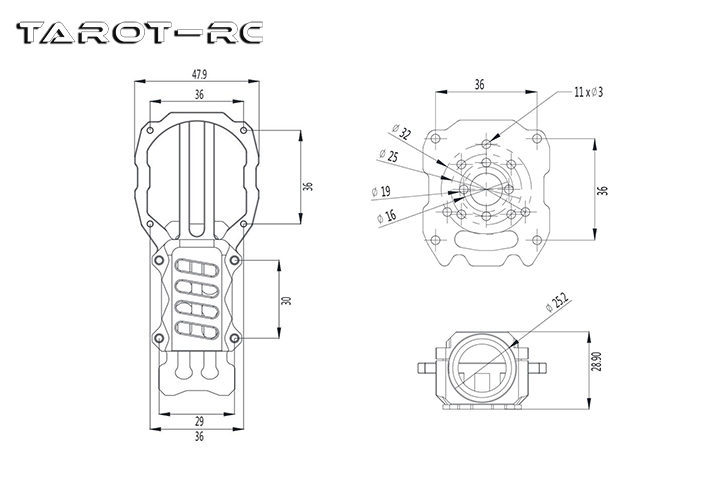

· Motor mounting pitch: 16MM/19MM/25MM/27MM equilateral triangle installation.
Specification:
· CF ESC installation plate x1 (62x29.3x1.3MM) 2.2G
· CF motor adapter plate x1 (52x45x2.0MM) 5.2G
· Metal 25mm Motor Mountx1 (92.5x48x27MM) 36.0G
· M3x10MM Cup Head Hex screw x4
· M2.5x6.5 Hex Step screw x4
· M2x6MM Hex Flathead screw x4
