Tarot 280 Through FPV Kit （Carbon feiber version）TL280C
Products

Product：Tarot 280 Through FPV Kit （Carbon feiber version）TL280C

Category：Multi-copter Frame

Price：165 RMB

Date：2015-08-18

Hits：17723

Product Description ：
  • Tarot FPV racing drone is designed to fly under all circumstances, with its brand new appearance, this 250 racing drone brings us an extraordinary flying experience.
  • Smooth top and side hole are for better motivation. Openable canopy is for easier replacement. With adjustable lens, quick-release structure, and light-weight design, Tarot FPV racing drone is ready for a new adventure!
Specifications ：

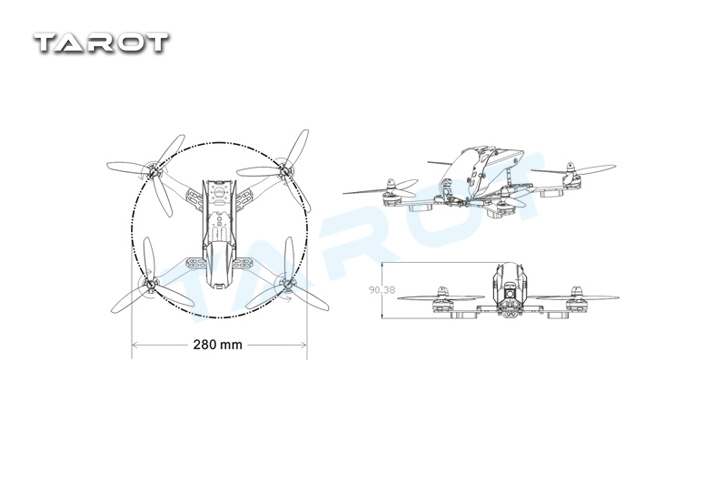

  • Wheelbase: 280MM
  • Neat Height / assembly height: 90.4MM
  • Neat length / assembly length: 220MM / 340MM
  • Neat width / assembly width: 252MM / 370MM
  • Neat weight: 141G
Suggested Equipment ：
  • Brushless motor: 2204KV TL400H
  • Brushless ESC: TL300G2 (Required) ; UBEC power TL2681 (optional)
  • Prop size: 6’’ 3-leaf TL300E
  • Lens: PAL standard; TL300M / TL300M2 or NTSC standard; TL300MN / TL300MN2

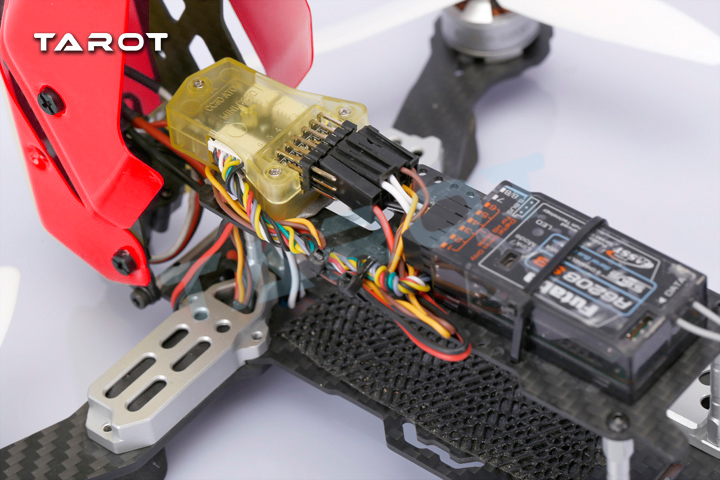

  • Flight Controller: MINI CC3d
  • 5.8G TX: TL300N / TL300N2
  • 5.8G antenna: TL300K / TL300K2
  • Lithium-polymer battery: 11.1V / 2200MAH
  • Battery dimension limit: Length 70-120MM / width 37MM / height 27.5MM
Specification:
  • FPV Racing Drone x1
  • JST plug x1
  • 70MM servo wire x2
  • XT60 plug x1
  • Battery Strap x1
  • Battery Tie x1
  • Manual x1
