Product Description:
·Tarot's 4114 high-efficiency multi-axis brushless motor is designed for multi-rotor aircraft;
·Adopting high precision CNC machining, the outer flat table is smooth without traces and has excellent balance;
·Newly designed high-efficiency vortex fan top cover provides powerful cooling airflow;
·The rotor is made of high magnetic material NdFeB;
·Stator with high strength epoxy resin pressurized and reinforced to protect against high temperatures;
·High flux outrunner motor with special balancing calibration;
·Improved the vibration problem caused by the poor balance of ordinary outboard motors;
·Motor shaft is made of high speed alloy steel;
·High-speed precision bearings are used in the upper and lower covers of the motor;
·It has the advantages of low friction torque, low power loss, shock resistance, and strong radial support at instantaneous high speed;
·The new generation of 4114 brushless motors has passed strict dynamic, static, magnetic field characteristics, strong magnetic high temperature resistance, demagnetization loss, motion vibration, noise, load performance and other engineering technical proof;
·Continuing to inherit the Tarot brushless motor: long life, high efficiency, low power consumption, low noise, stable control of the superior characteristics.
Product Parameters:
Support lithium battery section: 6S
Motor KV value:320KV

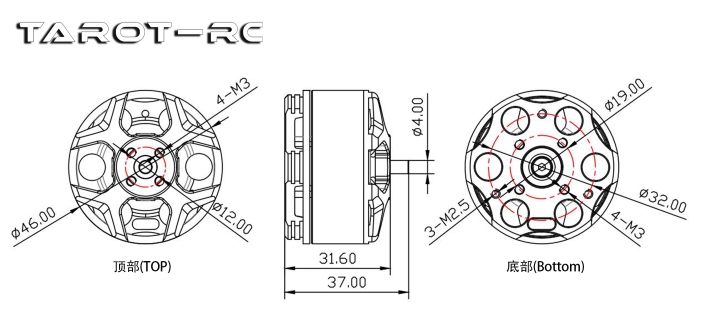

Motor mounting hole pitch:19mm/32mm
Recommended rotor size :15-16 inch
Motor peripheral diameter :46.00mm
Stator diameter :41.0mm
Stator end thickness :14.0mm
Number of stator ends :24N
Number of motor poles :22P
Wire diameter :0.31mm
No-load current :0.5A
Motor internal resistance :126mΩ
Motor weight :148g
Gear shaft mounting diameter :￠4.0mm
Motor length :32.0mm
Motor shaft length :37.0mm

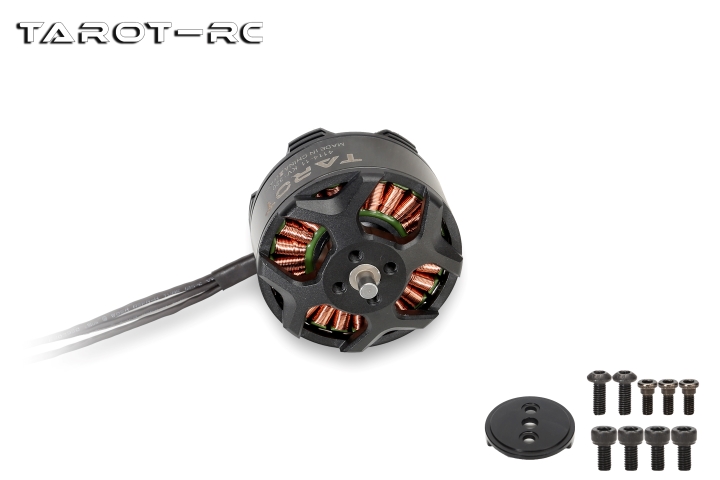

Shipping List:
Tarot 4114/320KV Motor×1
Props clamp ×1
Step screw(M2.5*6) ×3
|
