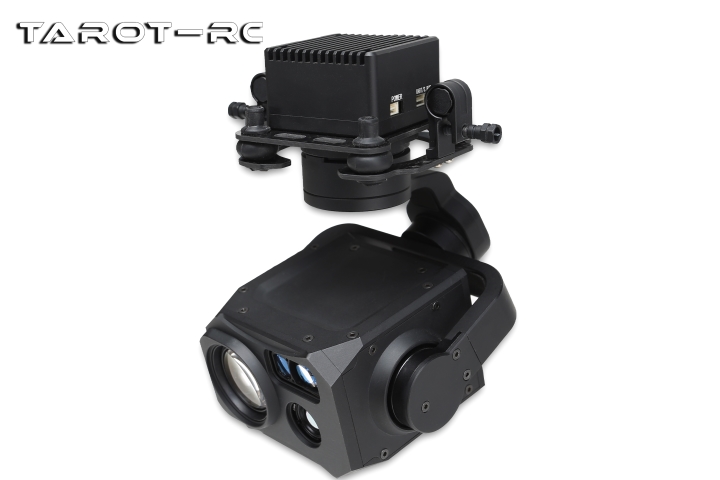

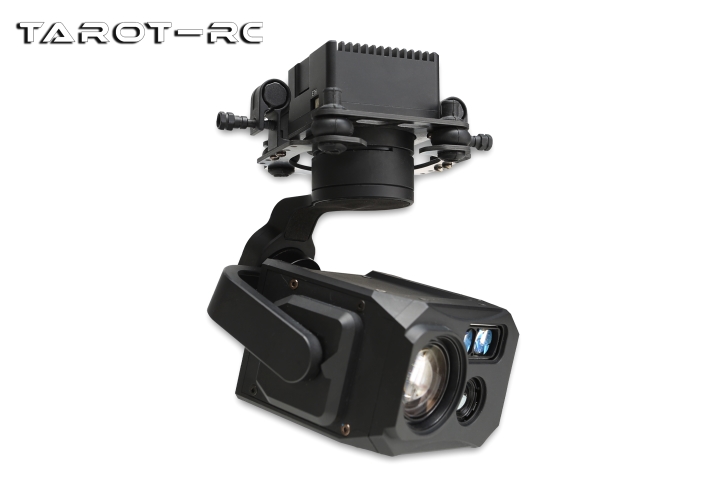

Product Description:·The Tarot TL3T41 model is a specialized three-axis, three-sensor gimbal engineered by our company to meet the demands of numerous industries, including power inspection and firefighting;
·It features a built-in independent IMU for precise gimbal attitude control, integrates a dedicated servo drive module for the gimbal, and supports both Yaw following and Yaw locking operating modes;
·Equipped with a professional-grade 640 thermal imaging camera with temperature measurement, a 2-kilometer rangefinder module, and a 4K visible-light camera;
·Widely applicable across multiple industries including firefighting, forestry public security, public security surveillance, search and rescue, and environmental law enforcement and others.
Product Features:1.The total weight of the gimbal is 443g;
2.10X zoom visible light 3840×2160, 8X thermal imaging with temperature measurement 640×512, 2-kilometer rangefinder module;
3.Gimbal supports a wide voltage input range of DC 20-60V;
4.Mechanical three-axis image stabilization, ± 0.01 ° image stabilization accuracy;
5.Aluminum alloy structural design, lightweight yet sturdy with excellent heat dissipation performance;
6.Highly optimized servo motor vector control algorithm;
7.Real three-axis (Yaw axis, Pitch axis, Roll axis) independent control;
8.The Pitch axis and Yaw axis support angle mode and rate mode control;
9.The gimbal supports both Upright and Inverted installation. (Inverted installation automatically detects and activates within 30 seconds of powering on);

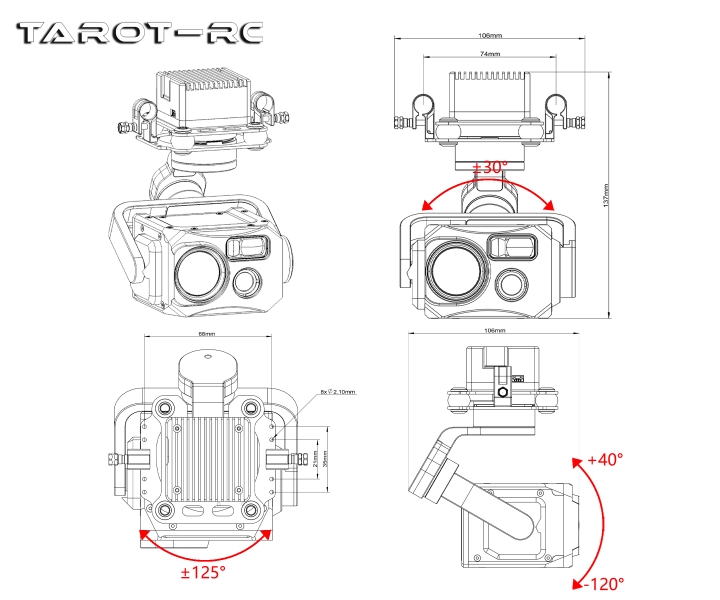

10.Yaw axis direction controllable angle (Yaw):±125°;
11.Pitch axis direction controllable angle (Pitch):-120°至+40°;
12.Roll axis direction controllable angle (Roll) :±30°;
13.Support One Click Down 90° downward looking and Back to center operation;
14.Supports S.Bus control, four-channel PWM control, serial UART control, network ETH control, and PC control;
15.Network standard RTSP video output mode;

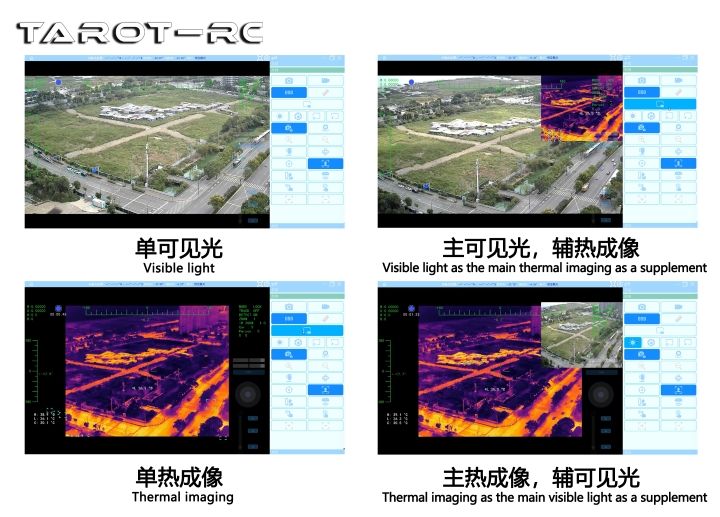

16.Support for visible light, thermal imaging of the four PIP switching video output display;

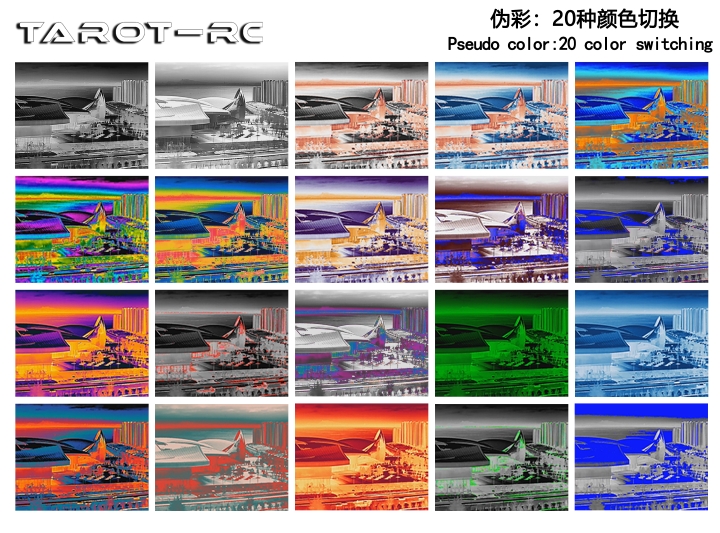

17.Thermal imaging support 20 kinds of pseudo-color output mode;
18.Supports finger-dragging panning;
19.Supports finger-dragging temperature measurement, center point temperature measurement, and global temperature measurement;
20.Supports person/vehicle recognition;
21.Supports target tracking;
22.Supports online downloading of photo and video files;
23.Customized dedicated ground station PC/Android GCS software enables real-time display and control.
Packing List:TL3T41 Gimbal×1
Cable Kit ×1
