| Parameter name | Parameter value | Parameter name | Parameter value |
|---|
| Empty Frame Net Weight | 2.34KG | Wheelbase | 1600mm | | Empty aircraft weight | 10.3KG(with ESC,Props,Motor) | Deployed wing length | 2373mm | Battery weight

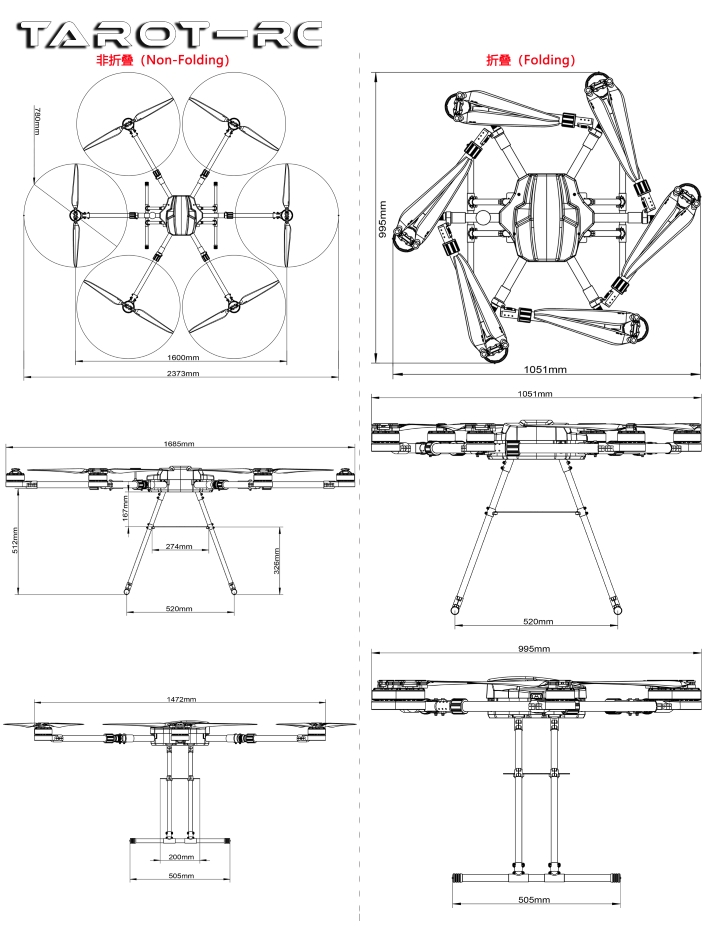

| 2.56KG*2 | Folding size | 995*1051mm | | Take-off weight | 15.4KG | Center plate size | 315*293mm | | Max. wind resistance | Force 6 wind | Frame height | 512mm | | Flight distance | 4000M | Arm tube diameter | 30mm | | Flight altitude | 3000M | Landing gear tube diameter (horizontal/vertical) | 20mm | | Flight mode | Self-stabilizing,altitude setting,stay-behind,one-key return,etc. | | | | Test environments | Dec. 15, 2025: Sunny. 12°C. Wind force 3 | | | | | Drone endurance length is related to the test environment and battery capacity | | | | Unload Flight | 27A≈46 minutes (Tested with TATTU 6S22000mAh*2 batteries Fully charged at 4.2V, discharged to 3.0V during testing)
| | |
Product Description:
·Tarot's newest hexacopter multi-rotor drone frame, specifically designed for medium-sized IV training instructors;
·Wheelbase: 1600mm Compatible with commonly available tripods, microphones, projectors, and other equipment;
·Suitable for applications demanding high mobility, such as surveillance, remote sensing, surveying and mapping, aerial reconnaissance, fire observation, life exploration, cable inspection, farm monitoring, and more.
Product Features:

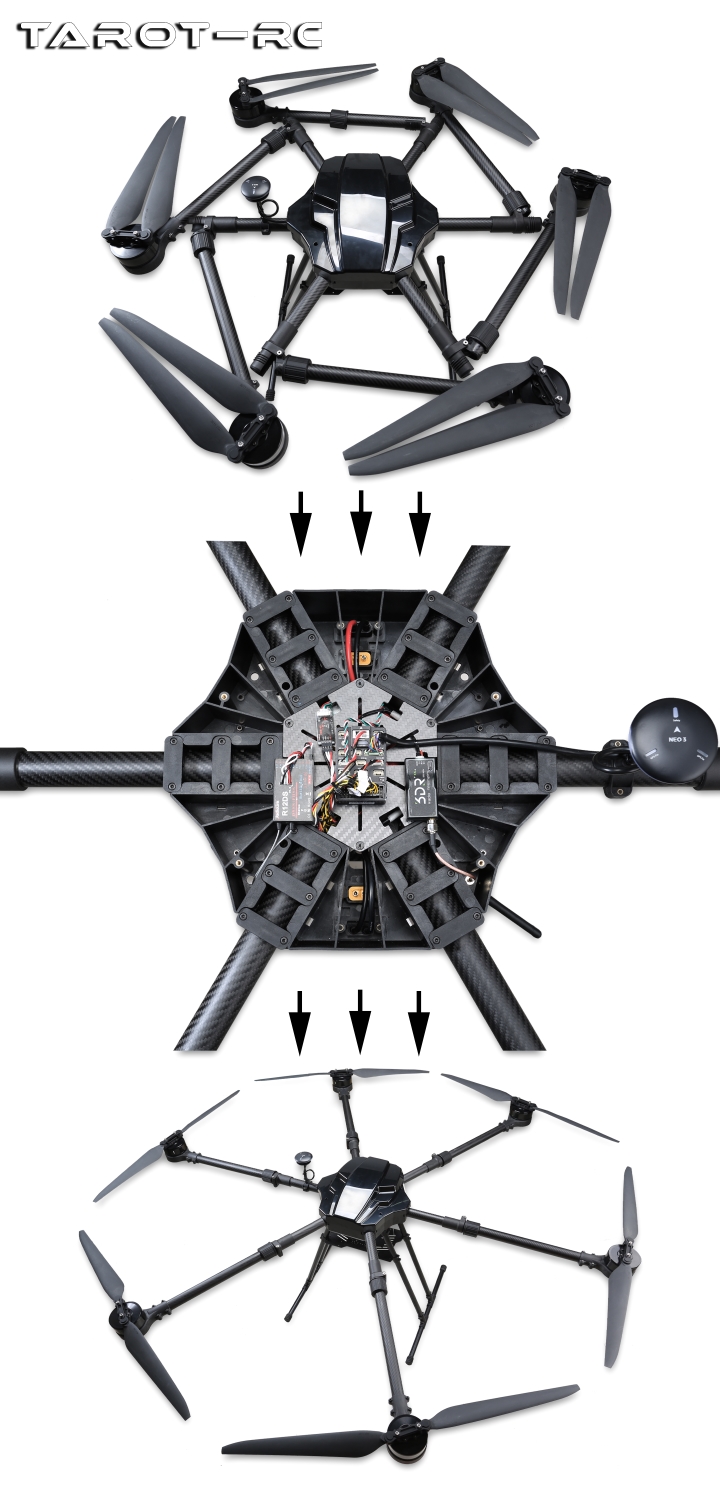

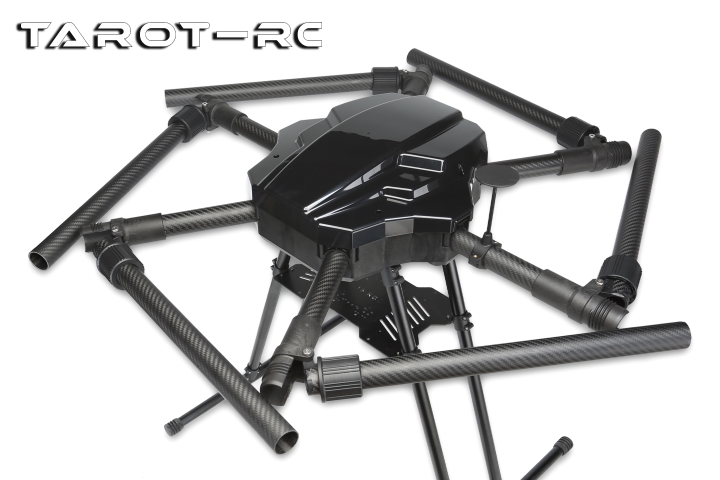

1. Integrated frame body with wrap-around folding design;

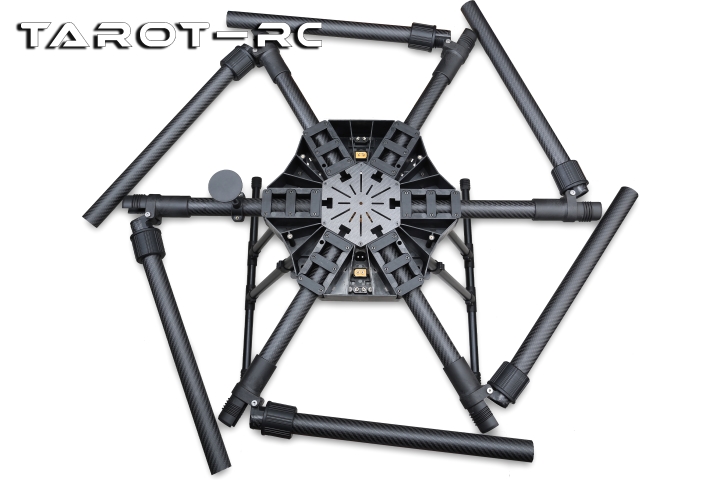

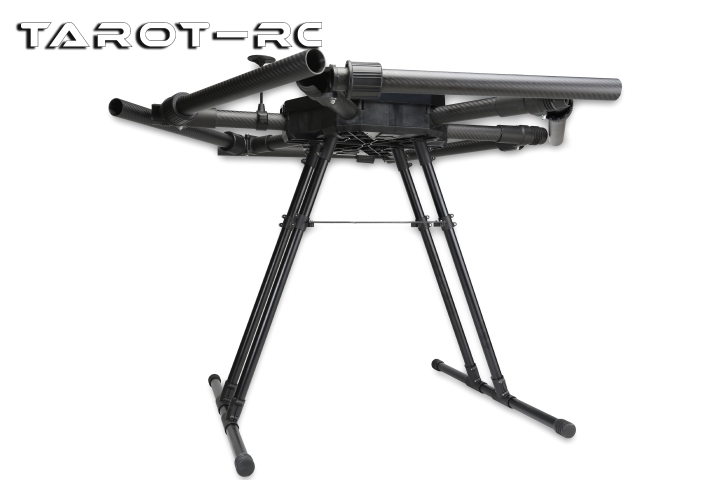

2. Knob-operated folding mechanism allows 360-degree counterclockwise folding of arms, maximizing space efficiency;
3. Frame body molded from imported composite material via one-piece injection molding, featuring 30% carbon fiber content for robust structural stability;

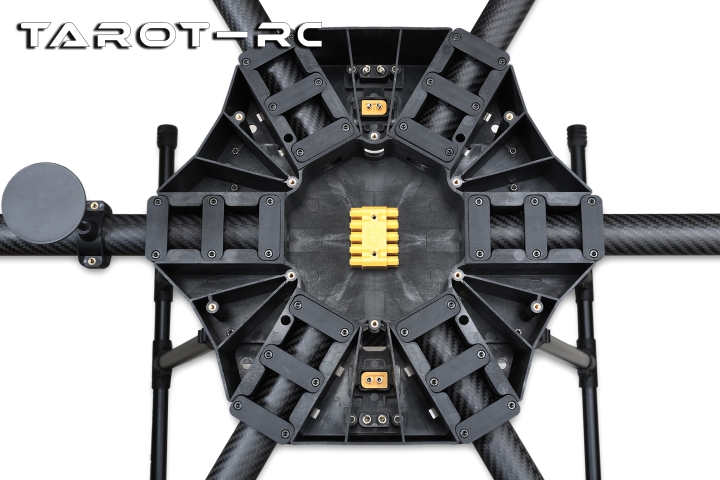

4. Integrated Tarot TL60-10H full copper gold-plated high-current power distribution board, minimalist installation structure compatible with mainstream flight controllers;
5. Integrated dual XT90E-M battery input connectors and dual XT60E-F power output connectors; reinforced connector design for easy plugging/unplugging and enhanced user experience;

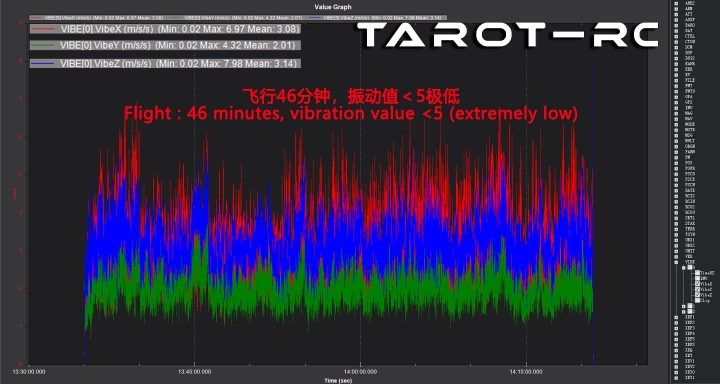

6. Recommended pairing with Tarot High-Performance Power Kit (8120 motor + 80A custom ESC), delivering 46 minutes of flight time in testing;
7. Supports choice of either 12S30AH*1 or 6S22AH-30AH*2 batteries in series configuration;
8. 15KG payload capacity design, suitable for diverse flight applications;
9. Empty frame weight: 2.34KG.
Packing List:
Hexacopter/Integrated/Empty frame ×1
|
